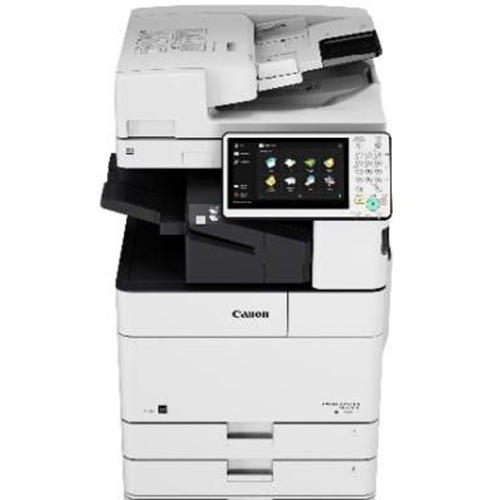

Canon imageRUNNER C3025i (LC)

Canon imageRUNNER C3025i (LC)

High-quality colour A3 all-in-one for busy offices

A reliable A3 colour multifunctional, delivering value for demanding offices through high productivity and quality printing - a complete document workflow ecosystem.



Manage your cost’s

Easy device and output management means a reduction in administrative costs thanks to less time and effort needed to maintain the device.

Trusted Security

Ensure information remains safe with secure printing and PDF password protection option. Optional uniFLOW adds further levels of security for your office eco-system.



Agile Working

Thanks to mobile printing and scanning capabilities, including Apple AirPrint™ and Mopria printing, it not only supports new ways of working but promotes it.

Assured Canon Quality

Easy to use, responsive 12.7 cm (5”) colour touch screen and V² (Vivid & Vibrant) imaging technology helps user experience and makes documents stand out from the crowd.

Versatile solution

Ideal document solution for small workgroups with optional 3-in-1 staple finishing in a compact footprint, along with key technologies to support any Office ecosystem.

Machine type

Colour Laser Multifunctional

Core functions

Print, Copy, Scan, Send and Optional Fax

Processor Speed

Canon Dual Custom Processor (Shared) 800 MHz

Control Panel

12.7 cm (5 inch) TFT LCD WVGA Colour Touch panel

Memory

Standard: 2.0GB RAM

Interface Connection

NETWORK

Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n);

Optional: NFC



OTHERS

Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1;

Optional: Copy Control Interface

Network protocols

TCP/IP, Frame type: Ethernet II

Print applications: LPD/Raw/IPP/IPPS/FTP/WSD/Mopria/GCP/AirPrint/Windows10 Mobile Print

Paper input (Standard)

2 x 550-sheet cassettes (80gsm)

100-sheet multi-purpose tray (80gsm)

Paper input (Option)

2 x 550-sheet cassettes (CASSETTE FEEDING UNIT-AP1)

Maximum paper input capacity

2,300 sheets (80 gsm)

Paper output capacity

Without Finisher: 250 sheets (A4, 80 gsm)

With Inner Finisher: Max. 600 sheets (A4, 80 gsm)

Finishing capabilities

Collate, Group

With Inner Shift Sorter: Collate, Group, Offset

With Inner Finisher: Collate, Group, Offset, Staple, Staple-Free Staple, Staple on Demand

Supported media types

Cassettes 1/2:

Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper,

Transparency, Bond paper, Envelope



Multi-purpose tray:

Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper,

Transparency, Bond paper, Envelope, Label, Tracing paper, Coated paper



Cassette 3/4 (CASSETTE FEEDING UNIT-AP1):

Thin paper, Plain paper, Thick paper, Colour paper, Recycled paper, Pre-punched paper,

Transparency, Bond paper

Supported media sizes

Cassette 1:

Standard size: A4, B5, A5R

Envelopes: No.10 (COM10), ISO-C5, DL

Custom Size: 139.7 mm x 182 mm to 297 mm x 215.9 mm



Cassette 2:

Standard size: A3, B4, A4, B5, A4R, A5R

Envelopes: No.10 (COM10), Monarch, DL

Custom Size: 139.7 mm x 182 mm to 304.8 x 457.2 mm



Multi-purpose tray:

Standard size: A3, B4, A4, A4R, B5R, B5, A5, A5R, SRA3

Custom size: 98.4 mm x 139.7 mm to 320 mm x 457.2 mm

Envelopes: No.10 (COM10), Monarch, ISO-C5, DL



CASSETTE FEEDING UNIT-AP1:

A3, B4, A4, A4R, B5R, B5, A5R

Custom Size: 139.7 mm x 182 mm to 304.8 mm x 457.2 mm

Supported media weights

Cassette 1/2:

52 to 220 gsm



Multi-purpose tray:

52 to 300 gsm



Duplex:

52 to 220 gsm



Cassette Feeding Unit-AP1:

52 to 220 gsm

Warm-up Time

From Power On: 30 Seconds or Less1

From Sleep Mode: 10 Seconds or Less

Dimensions (H x W x D)

880 mm x 565 mm x 664 mm

Installation Space (W x D)

978 mm x 1,117 mm (Basic: RADF + Multi-purpose tray extension extended + Cassette open)

1,110 mm x 1,117 mm (Fully Configured: RADF +INNER FINISHER-K1 + Multi-purpose tray extension extended + Cassette open)

Weight

Approx. 67.6 kg including toner

Print Specifications

Printing method

Colour Laser Beam Printing

Print Speed (BW/CL)

25 ppm (A4), 15 ppm (A3), 20 ppm (A4R), 25 ppm (A5R)

Print Resolution

600dpi×600dpi, 1200dpi×1200dpi

Page description languages

UFR II, PCL 6 (Standard), Genuine Adobe PostScript Level 3 (Optional)

Double Sided Printing

Automatic (Standard)

Direct Print



Direct printing available from USB memory key

Supported file types: TIFF, JPEG, PDF and XPS*



*XPS is supported from LPR command print.



Printing from mobile and cloud

A range of software is available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements.

Please contact your sales representative for further information

Fonts



PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Barcode fonts*

PS fonts: 136 Roman

*Requires optional BARCODE PRINTING KIT-D1



Operating System

UFRII: Windows Vista/Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10/Server 2016, MAC OS X (10.7.5 or later), Linux

PCL: Windows Vista/Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10/Server 2016

PS:Windows Vista/Server 2008/Windows 7/Server 2008 R2/Windows 8/Server 2012/Windows 8.1/Server 2012 R2/Windows 10/Server 2016, MAC OS X (10.7.5 or later)

PPD: MAC OS 9.1 or later, MAC OS X (10.3.9 or later), Windows Vista/Windows 7/Windows 8/Windows10

SAP Device Types are available via the SAP Market Place.

Please refer to http://www.canon-europe.com/support/business-product-support for availability of print solutions for other operating systems and environments including AS/400, UNIX, Linux and Citrix.

Some of these solutions are chargeable.

Copy Specifications

Copy speed (BW/CL)

25 ppm (A4), 15 ppm (A3), 20 ppm (A4R), 25 ppm (A5R)

First-Copy-Out Time (BW/CL)

Approx. 5.9/8.2 seconds or less

Copy resolution

Reading: 600 dpi x 600 dpi

Printing: 600 dpi x 600 dpi

Multiple Copies

Up to 999 copies

Copy Exposure

Automatic or Manual (6 Levels)

Magnification

25% - 400% (1% Increments)

Preset Reductions

25%, 50%, 71%, 100%

Preset Enlargements

141%, 200%, 400%

Scan Specifications

Standard type

Reader and Duplexing Automatic Document Feeder

Supported media size/s

A3, B4, A4, A4R, B5, B5R, A5, A5R, B6

Pull Scan Specifications

Colour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows Vista/7/8/8.1/10

Scan Resolution

204 x 196 dpi, 300 x 300 dpi

Acceptable Originals/weights

Platen media size: Sheet, Book, 3-Dimensional Objects (Up to 2kg)



Document feeder Media size : A3, B4, A4R, A4, B5R, B5, A5R, A5, B6

Document Feeder media weight:

1-sided scanning: 38 to 128 gsm/64 to 128 gsm (BW/CL)

2-sided scanning: 50 to 128 gsm/64 to 128 gsm (BW/CL)

Scan Method

Send functionality available on all models

Scan to USB Memory Key:  Available on all models

TWAIN/WIA Pull scanning available on all models

Scan Speed (BW/CL; A4)

Single-sided Scanning (BW): 55 ipm (300pi) / 30 ipm (600 dpi)

Single-sided Scanning (Colour): 55 ipm (300pi) / 30 ipm (600 dpi)

Double-sided Scanning (BW): 27.5 ipm (300pi) / 15 ipm (600 dpi)

Double-sided Scanning (Colour): 27.5 ipm (300pi) / 15 ipm (600 dpi)

Paper Capacity

100 Sheets (80 gsm)

Double sided scanning

2-sided to 2-sided (Automatic)

Send Specifications

Optional / Standard

Standard

Destination

E-mail/Internet FAX (SMTP), SMB, FTP, Super G3 FAX(Optional)

Colour Mode

Auto Colour Select (Full Colour, Grayscale),

Auto Colour Select (Full Colour/ Black-and-White)

Full Colour, Grayscale, and Black-and-White

Address Book/Speed dials

LDAP (50)/Local (300)/Speed dial (281)

Send resolution

204 x 196 dpi, 300 x 300 dpi

Communication protocol

File: FTP, SMB v3.0

E-mail/I-Fax: SMTP, POP3, I-Fax (Simple)

File Format

Standard: TIFF, JPEG, PDF(Compact, Searchable)

Optional: PDF(Encrypted, Digital Signature)

Fax Specifications

Optional / Standard

Optional

Maximum Number of Connection Lines

1

Modem Speed

Super G3: 33.6 kbps

G3: 14.4 kbps

Compression Method

MH, MR, MMR, JBIG

Resolution

400 x 400 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi

Sending/Recording Size



A5* and A5R* to A3

*Sent as A4



FAX memory

Up to 512 pages

Speed dials

Max. 281

Group dials/destinations

Max. 299 dials

Sequential broadcast

Max. 310 addresses

Memory backup

Yes

Security Specifications

Authentication

Standard: Department ID Authentication

Universal Login Manager

Network

Standard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP

Document

Standard: Secure Print

Optional: Encrypted PDF, Device signatures

Environmental Specifications

Operating Environment

Temperature: 10 to 30 ºC (50 to 86 ºF)

Humidity: 20 to 80 % RH (no condensation)

Power Source

220-240 V (±10 %), 50/60 Hz (±2 Hz), 4.0 Amp

Power Consumption

Maximum: Approx. 1.5 kW

Printing: Approx. 407.8 Wh or less*

Standby: Approx. 33.6 Wh

Sleep mode: Approx. 2 W

Plugin Off: Approx. 0.1 W*

Typical Electricity Consumption (TEC) rating2: 0.9 kWh



Lot 26  (http://www.canon-europe.com/For_Work/Lot26/index.aspx)



*Data taken from Blue Angel Certification User Information

Noise levels (BW/CL)

Sound Power Level (LwAd)3

Active(BW): 64 dB or Less*, Active(CL): 63.9 dB or Less*, Standby: No noise**



Sound Pressure (LpAm)4

Bystander’s position:

Active(BW): 47 dB or Less, Active(CL): 48dB or Less, Standby: 4.7db**



*Data taken from Blue Angel Certification User Information

**Data taken from ECO declaration

Standards

ENERGY STAR® Qualified

Ecomark

Green purchase

Blue Angel

Software and Printer management

Remote management tools

iW Management Console:

Server-based software for centralised management of a fleet of devices (includes monitoring or consumables, status monitoring and alerts, distribution of address books, configuration settings, firmware and MEAP applications, meter capture and reporting, driver and resource management)

eMaintenance:

Compatible with eMaintenance services via embedded RDS (Enables meter capture, automatic consumables management, remote diagnostics and reporting for service providers to offer efficient, fast and proactive maintenance)

Scanning software

ScanGear MF:

TWAIN-compliant scanner driver that enables computers on a network to use the pull scan functionality of the device

Optimisation tools

Canon Driver Configuration Tool:

A utility for changing the factory default settings of Canon print drivers (Available via service only)

Document Publishing

iW DESKTOP (OPTIONAL)

Powerful print publishing software which easily combines documents from different sources and file formats, applies finishing with preview and templates to create professional looking documents. Includes PDF creation, annotation and compression capabilities for simple digital workflows such as proofing and authorisation

CONSUMABLES

Toner Cartridge/s

C-EXV 54 TONER BK/C/M/Y

Toner (Estimated Yield @5% Coverage)

C-EXV 54 TONER BK: 15,500 pages

C-EXV 54 TONER C/M/Y: 8,500 pages
