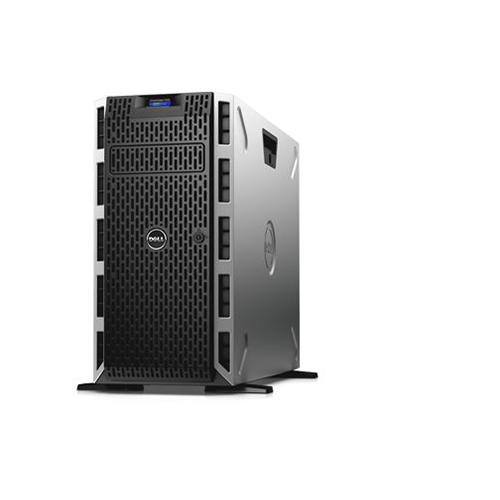

Dell PowerEdge T430 Tower Server (YFYJF) DT

Dell PowerEdge T430 Tower Server (YFYJF) DT

owerful, expandable and quiet

The PowerEdge T430 tower server delivers powerful 2-socket performance, expandability and quiet operation to small businesses and organizations.



The T430 is an ideal choice for a wide range of office workloads, such as:

• Workgroup collaboration and productivity
• Mail and messaging
• File and print serving
• Web serving



Deliver peak performance

Accelerate your applications with the latest Intel® Xeon® processor E5-2600 v4 product family and boost memory and I/O performance with:

• DDR4 memory that provides as much as 15 percent greater memory bandwidth than previous-generation DDR3 RAM
• 12 DIMM slots that enable you to expand memory capacity as needed
• Six PCIe Gen3 slots that deliver twice the data throughput compared to PCIe Gen2



Scale and adapt with greater versatility

A highly flexible design lets you deploy server performance where it's needed and adapt as your requirements change over time.

• Install the T430 in a range of environments, thanks to a rackable tower design, short 22-inch depth and quiet acoustics.
• Expand your storage with your choice of internal hard-drive form factors and capacities, while protecting data with RAID options.
• Adapt to evolving workload demands with an expandable, virtualization-ready platform.



Maximize operational efficiency

Save time and reduce potential for error with simplified, intuitive systems management, and help reduce costs with energy-efficient features.

• Simplify administration by automating deployment, management and updates with the integrated Dell Remote Access Controller 8 (iDRAC8) with Lifecycle Controller.
• Control server availability more effectively by monitoring and managing the health and availability of PowerEdge servers anytime, anywhere through OpenManage Mobile and a handheld device.
• Harness your budget with energy-efficient processors, memory and power supplies. Fresh Air 2.0 configurations allow you to operate at extended temperatures without chilled air.





Processor

• Intel® Xeon® processor E5-2600 v4 product family

  Processor sockets: 2

Operating System

• Microsoft® Windows Server® 2008 R2

  Microsoft Windows Server 2012

  Microsoft Windows Server 2012 R2

  Microsoft® Windows Server® 2016

  Novell® SUSE® Linux Enterprise Server

  Red Hat® Enterprise Linux

  VMware® ESX®

Memory1

• Up to 2400MT/s DDR4 DIMMs

  Maximum RAM: Up to 384GB (12 DIMM slots): 4GB/8GB/16GB/32GB

Drive Bays

• Up to 8 x3.5” SAS, SATA, nearline SAS,SSD drives with optional flex bay

  Up to 4 x3.5” SAS, SATA, nearline SAS,SSD drives with optional flex bay

  Up to 16 x 2.5” SAS, SATA, nearline SAS, SSD drives with optional flex bay

Chassis

• Height:

  Chassis base height - 430.3 mm (17.04")

  with feet - 443.3 mm (17.45")



  Width:

  Chassis base width 5U - 218 mm (8.58")

  with feet - 304.5 mm (11.98")



  Depth:

  front to rear wall (with bezel) - 558.6 mm (21.99")

Availability

• ECC memory

  Single Device Data Correction (SDDC)

  Spare Rank

  Hot-plug hard drives

  Hot-plug redundant power

  iDRAC8 with Lifecycle Controller

  Support for HA clustering

  Virtualization-ready

  Internal Dual SD Module (Failsafe Hypervisor)

  TPM 1.2

Power

• 495W, 750W, 1100W hot-plug PSU

  450W cabled PSU

RAID Controllers

• Support for a maximum of 1 internal controller and one external controller

  PERC Η730,PERC Η730P and PERC Η830

Chipset

• Intel C610 series chipset

Storage

• SAS, SATA, nearline SAS, SSD

Slots

• Support for up to 2 x PCIe 2.0 + 4 x PCIe 3.0

Network Controller

• 2 x 1GbE LOMs

Management

• Systems management:

  IPMI 2.0 compliant

  Dell OpenManage Essentials

  Dell OpenManage Mobile

  Dell OpenManage Power Center



  Remote management:

  iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade),16GB vFlash media (upgrade), iDRAC Quick Sync

  Dell OpenManage Integrations:

  Dell OpenManage Integration Suite for

  Microsoft® System Center

  Dell OpenManage Integration for VMware® vCenter™

  Dell OpenManage Connections:

  HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management

  Dell OpenManage Plug-in for Oracle® Database Manager

Embedded Hypervisor (Optional)

• Citrix® XenServer®

  Microsoft® Windows Server® 2008, with Hyper-V®

  VMware® vSphere

Communications

• Broadcom 5720

  Optional add-in NICs

Video Card

• Video Type: Integrated Matrox® G200 with iDRAC8

  Video Memory: 16 MB shared with iDRAC8 application memory
