HUAWEI LUNA 2000-129kWh Smart Energy System - L
NGN89,600,000.00
Availability:
In stock
Out of stock
HUAWEI LUNA 2000-129kWh Smart Energy System
Product Description

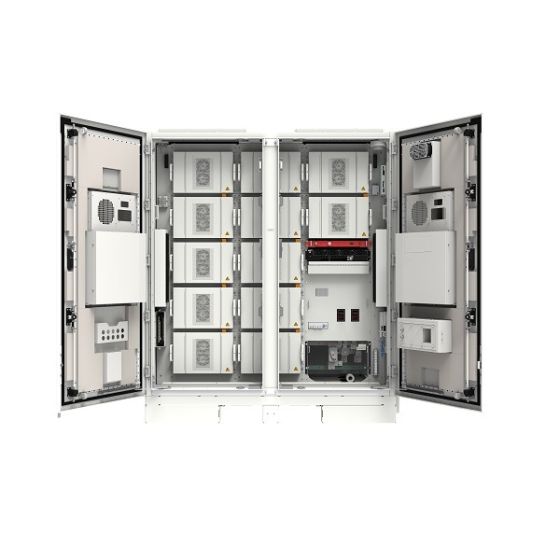

HUAWEI LUNA 2000-129kWh Smart Energy System
LUNA 2000-129kWh Battery System
The LUNA 2000-129kWh is a cutting-edge energy storage solution designed for industrial and commercial applications. With exceptional capacity, advanced safety features, and robust performance, it ensures efficient power management in demanding environments.
Specifications
Model
- LUNA2000-129kWh-2H1
Battery Configuration
- 8S1P
Maximum Capacity
- 129.0 kWh
Charging and Discharging Power
- Max. Charging Power: ≤ 100 kW
- Max. Discharging Power: ≤ 100 kW
Dimensions and Weight
- Dimensions (W x H x D): 1810 mm x 2135 mm x 1200 mm
- With Smart Rack Controller and PCS: 2570 mm x 2135 mm x 1200 mm
- Weight (with battery packs): ≤ 2430 kg
- Weight (without battery packs): ≤ 1090 kg
Environmental Tolerance
- Operating Temperature Range: –30°C to +55°C
- Storage Temperature Range: –40°C to +60°C
- Operating Humidity Range: 0–100% (Non-Condensing)
- Max. Operating Altitude: 4000 m
- Installation Environment: Outdoor Installation
Safety and Control
- Temperature Control Mode: Industrial-grade air conditioner
- Fire Suppression: Supported
Power Supply and Communication
- Auxiliary Power Supply: 220 V AC, ≤ 4.2 kW
- Communication Port: Ethernet / SFP
- Communication Protocol: Modbus TCP
Protection and Compliance
- IP Rating: IP55
- EMC Rating: Class A
- DC Surge Protection: Type II
Certifications
- Standards: GB/T 36276-2018, GB/T 33582, UL 9540A, UN 38.3, ISO 9227:2017, IEC 60529, IEC/EN 62477-1, IEC/EN 62040-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, EN 55011
- Environmental Compliance: RoHS
