TSTY 400kVA 400-400V Oil-Immersed Transformer - L
NGN9,864,000.00
Availability:
In stock
Out of stock

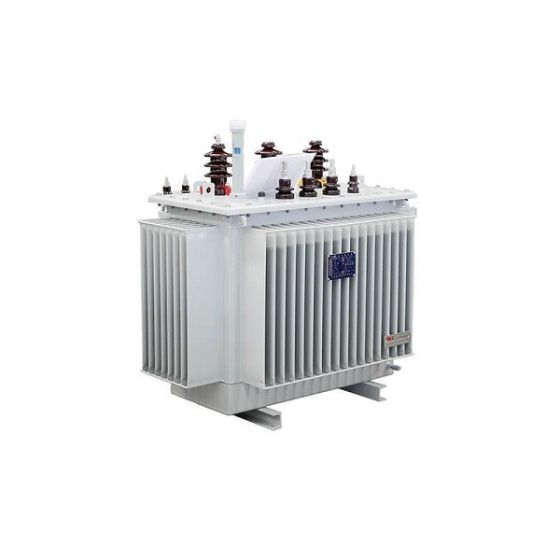

TSTY 400kVA 400-400V Oil-Immersed Transformer
Product Description
TSTY 400kVA 400-400V Oil-Immersed Transformer
- Description
High-Performance TSTY 400kVA 400-400V Oil-Immersed Transformer – Reliable, Efficient & Durable
Upgrade your power infrastructure with the TSTY 400kVA 400-400V Oil-Immersed Transformer, a high-efficiency, low-loss transformer designed for superior performance and durability. Ideal for power distribution, industrial plants, commercial buildings, and renewable energy systems, this transformer ensures reliable operation with advanced cooling and insulation systems. Fully compliant with IEC, ANSI, and IEEE standards, it is certified by ISO9001, CCC, and CE for quality and safety.
Key Features:
High Efficiency: Low loss and minimal noise for optimal energy savings.
Reliable Cooling: Oil-immersed design with ONAN (Oil Natural Air Natural) cooling system.
Durable Build: Fully sealed transformer with corrosion-resistant materials for longevity.
Flexible Applications: Suitable for power stations, industrial plants, commercial buildings, hospitals, airports, tunnels, and renewable energy systems.
Safe & Stable: Advanced insulation system prevents oil deterioration and enhances reliability.
Custom Voltage Options: Tailored voltage ratings available upon request.
Technical Specifications:
- Transformer Type: Oil-Immersed, Fully Sealed
- Rated Capacity: 400 kVA
- Number of Phases: Three Phase
- Winding Type: Two-Winding Transformer
- High Voltage: 10/11kV
- Low Voltage: 0.4kV
- Tapping Range: ±2×2.5%
- Impedance Voltage: 4%
- Load Loss: 2.73/2.6kW
- No-Load Loss: 0.34kW
- No-Load Current: 1.0%
- Frequency: 50/60Hz
- Vector Group: Yyn0 / Dyn11
- Cooling Method: ONAN (Oil Natural Air Natural)
- Coil Material: Aluminum / Copper
- Size: 1240 × 780 × 1360 mm
- Weight: 910 kg
