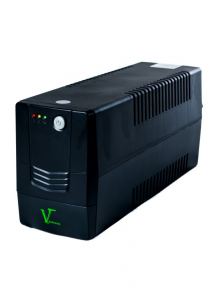

Vectronic-EG-3000VA

Input

Voltage:      220 / 230 / 240 Vac

Tolerance Normal Over-voltage:       280V

Withstand Over-voltage:   284V (max limit 285V)

 Under-voltage limit:          145V (lowest limit 142V)

Output

Voltage:     220/230V ± 10%,   ± 1% on battery

Power Factor0.6 .

Transfer Time:    2 – 6 ms (Typical)

Frequency:                      50Hz (On Battery)

Waveform:                      Sine Wave on normal; Simulated Sine on battery

DC Bus:

650VA12V

1000VA24V

1500VA24V

2000VA24V

3000VA48V

Cold-Start Function:       Yes

Charging Time:   6hr to recover to 90% capacity

Battery Charging in OFF Mode:   Yes

User Interface:

Indications forNormal mode

Battery mode / mains fail

Low battery

UPS fault

Environment:

Temperature:      0 ~ 40oC

Humidity:      20 ~ 90% Non-condensing

Noise Level:             Noise Level:                    Less than 40dB

Physical:

Dimensions             600 – 650VA:       279x101x142 (DxWxH)

 1000 – 2000VA:   320x130x182 (DxWxH)

3000VA:              460x138x166 (DxWxH)

Weight (Kg)650VA     :   4.3

 1000VA   :   7.9

 1500VA   :   11

 2000VA   :   10.7

 3000VA   :   19.7
